EJOT® FLEX Shaft

Specification

Overview
- Connection between required and actual working point
- Different drive and tip geometries possible
- Different lengths feasible
- Customer-specific geometry design
- High economic efficiency through exisiting family tool

Downloads

EJOT_FLEXShaft_Flyer_08.23_en.pdf 2 MB

CAD & more on ejot.com

With the one-time registration we provide in this area CAD data in various formats as well as PDFs of the technical drawings of our products DELTA PT^®, SHEETtracs^® and ALtracs^® Plus.

Additionally, CAD & more offers you the possibility to design your individual joints with the aid of prognosis programs or to check their feasibility by APPLICATION CHECKs. Furthermore, you can download the latest product brochures, technical publications and the EJOT company standards.

CAD & more

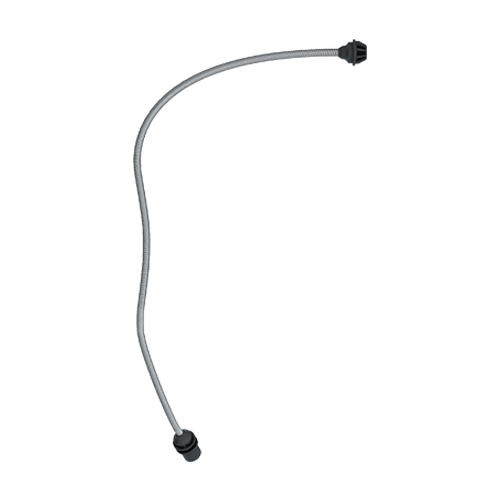

EJOT^® FLEX Shaft

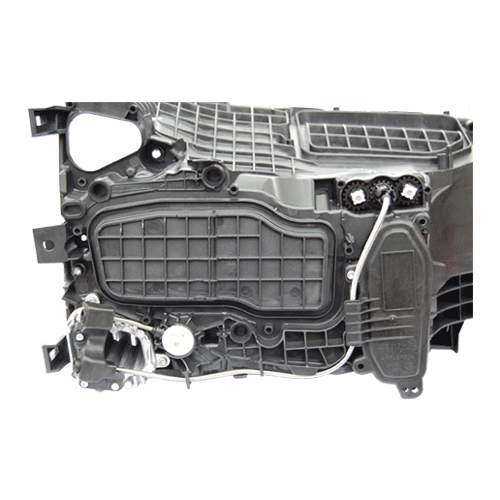

The use of the EJOT^® FLEX Shaft allows to shift the internal working point for a vertical or horizontal adjustment over a long access path. This is feasible without serious loss of power. The shaft transfers the force which is converted into a rotating motion to the actual internal working point.
