Drives and Head Styles

Specification

  • Overview

    Overview of available screw drives and head geometries at EJOT.

Hotline

Applications Engineer


CAD & more on ejot.com

With the one-time registration we provide in this area CAD data in various formats as well as PDFs of the technical drawings of our products DELTA PT®, SHEETtracs® and ALtracs® Plus.
Additionally, CAD & more offers you the possibility to design your individual joints with the aid of prognosis programs or to check their feasibility by APPLICATION CHECKs. Furthermore, you can download the latest product brochures, technical publications and the EJOT company standards.


CAD & more

Company Standard

For detailed information, please refer to the EJOT company standard.
You can download these in our service area "CAD & more".
Click here to register: "CAD & more"

EJOT Drives

1. Z Cross recess Pozidriv
2. Z Combi cross recess Pozidriv
3. H Cross recess Phillips
4. H Combi cross recess Phillips
5. C Cross recess Camera cross recess according to JCIS
6. Combi TORX®
7. TORX®
8. Tamper Resistant TORX®
9. TORX PLUS®
10. Tamper Resistant TORX PLUS®
11. Three star
12. Hexagon socket
13. Hexagon
14. One way
External TORX® (not pictured)
TORX® PARALOBETM (not illustrated)

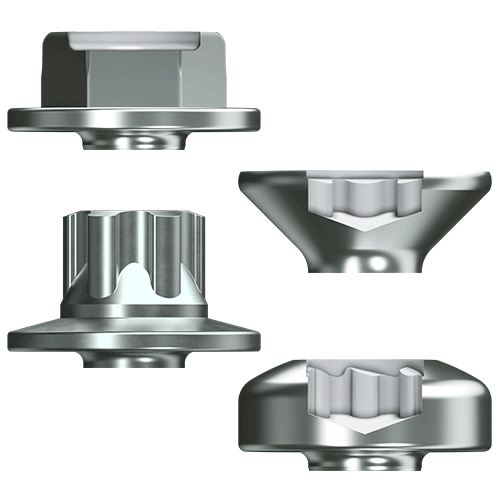

EJOT Head Styles

1. pan head with cross recess Z (or H)
2. pan head with TORX PLUS®/AUTOSERT
3. round washer head with TORX PLUS®/AUTOSERT
4. hexagon washer head
5. hexagon flange head
6. round washer head with cross-recess Z (or H)
7. flat countersunk head with TORX PLUS®/AUTOSERT
8. flat countersunk head with cross recess Z (or H)
9. oval countersunk head with TORX PLUS®/AUTOSERT
10. external-TORX with small flange
11. external-TORX with large flange
12. external-TORX with large flange for faster installation
